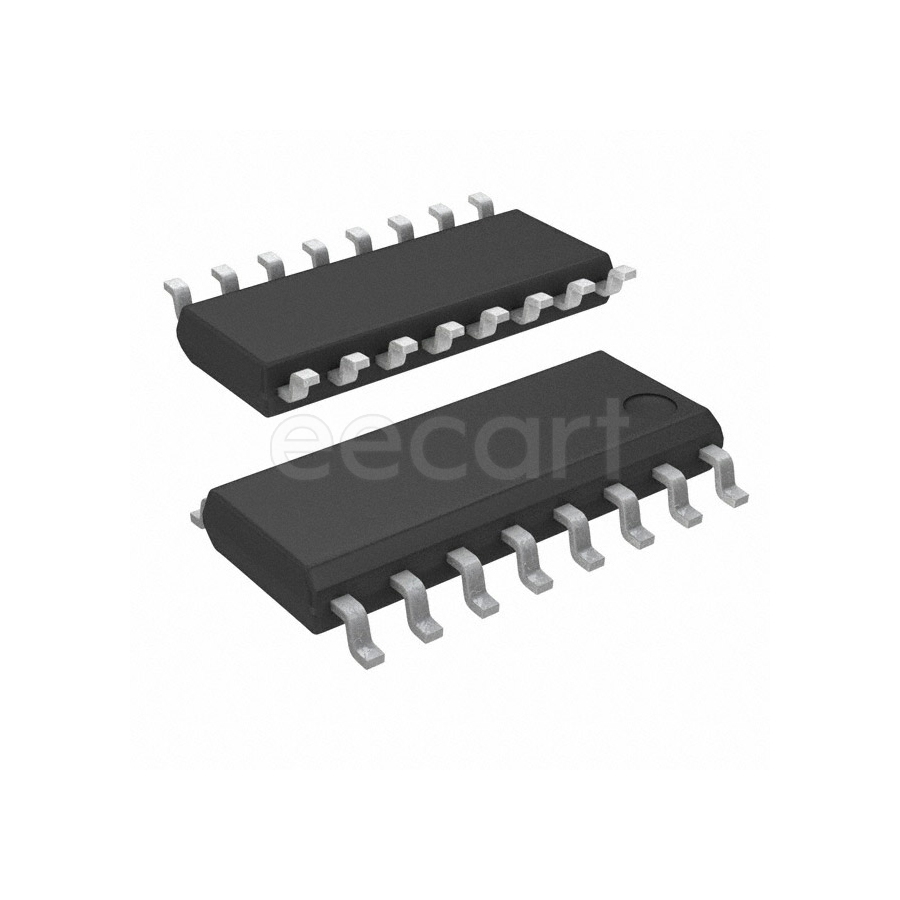

MAX3232CDR
Manufacturer:
Texas Instruments
Mfr.Part #:
MAX3232CDR
Datasheet:
Description:
RS-232 / RS-422 / RS-485 Interface ICs SOP-16 SMD/SMT Receiver, Transceiver 250 kbps
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Width | 3.91 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 1.75 mm |
| Thickness | 1.58 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Output Voltage | 5.4 V |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 3 V |
| Operating Supply Current | 1 mA |
| Max Supply Current | 1 mA |
| Logic Function | Receiver, Transceiver |
| Data Rate | 250 kbps |
| Simplex/Duplex | Full Duplex |
| Number of Transceivers | 1 |
| Nominal Supply Current | 1 mA |
| ESD Protection | Yes |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transmitters | 2 |
| Receiver Hysteresis | 300 mV |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 4987
Distributors
pcbx
pcbxUnit Price$0.45475
Ext.Price$0.45475
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45475 | $0.45475 |
| 10 | $0.35923 | $3.59230 |
| 25 | $0.32707 | $8.17675 |
| 50 | $0.29779 | $14.88950 |
| 100 | $0.27112 | $27.11200 |
| 300 | $0.24960 | $74.88000 |
| 500 | $0.22979 | $114.89500 |
| 1000 | $0.21602 | $216.02000 |
